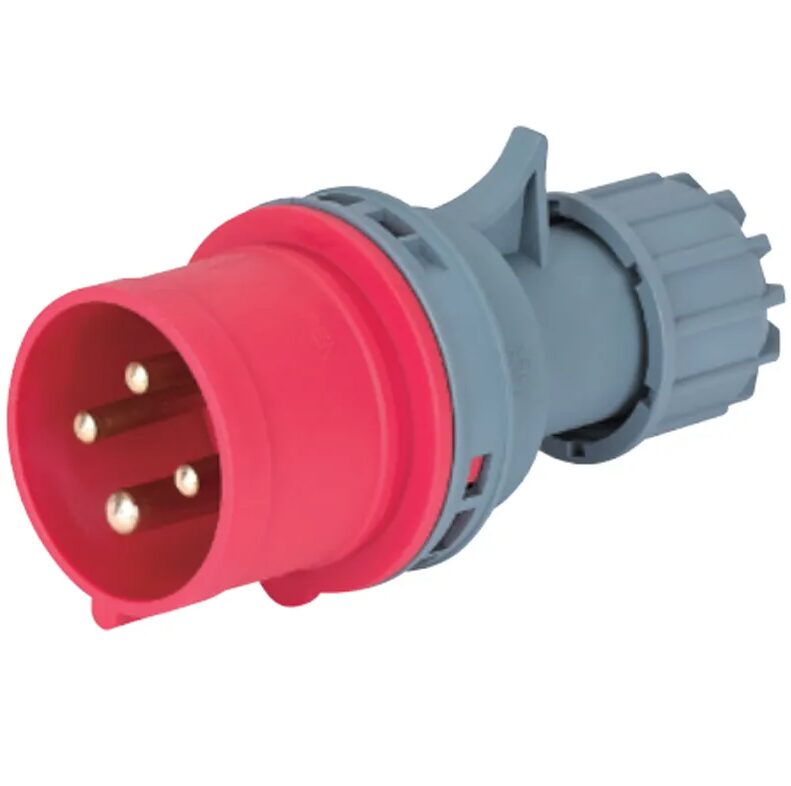

The 32A industrial plug produced by DTCEE adopts pure new material toughened nylon shell and high-precision brass conductor to ensure excellent insulation and conductive stability under industrial high-strength operation. As a direct supply factory with 6000 square meters of factory buildings, Datong Electric independently controls the production of copper parts, eliminating intermediate links and providing more advantageous wholesale prices and fast delivery for global suppliers.
32A industrial plug is mainly used in injection molding machine equipment, packaging machinery, refrigerated containers and industrial automation control cabinet.
The internal conductive contact adopts self-produced high-purity brass, and the conductivity is 15% higher than the industry average. This low-resistance design can control the temperature rise at full load operation within 45K, effectively prevent the terminals from over-melting and destroy, and ensure the continuous operation of electromechanical equipment.
shell selection of new impact resistant nylon material, do not add any recycled material. Its impact strength reaches 15 KJ per square meter, even in the winter cold or industrial site by accidental trampling, impact, there will be no structural cracking, to protect the internal electrical connections.
silicone rubber sealing ring and locking structure realized by precision injection molding process keep 32A industrial plug dry in humid and dusty environment. This directly reduces the frequency of electrical short-circuit caused by environmental water vapor intrusion, and prolongs the overall service life of the supporting equipment.
The product is designed with positioning keys and rotating locking rings that meet international standards to provide strong mechanical retention. When used on mechanical equipment subjected to vibration, it can ensure that the plug will not fall off accidentally and avoid the loss of production line downtime caused by sudden power failure.
the terminal space is sufficient and equipped with anti-loosening screws to support wire access from 2.5 to 10 mm² specifications. Compared with the traditional structure, this design shortens the installation time of a single plug by 30%, and significantly improves the assembly efficiency of the electromechanical equipment manufacturer.
The product has passed the rigorous high and low temperature cycle test, and the performance is not degraded at the ambient temperature of minus 30 degrees to 50 degrees. This enables the 32A industrial plug to adapt to various matching requirements from polar cold storage to high temperature heat treatment workshop, and improve the versatility of the product.
| Technical characteristics | Specifications Details | Meets standards |
| Rated current (A) | 32A | IEC 60309-1/-2 |
| Voltage range (V) | 110V/230V/400V (distinguished by color) | International standard color coding |
| Insulation resistance (MΩ) | > 5MΩ | 500V DC voltage test |
| Dielectric strength (V) | 2500V / 1 minute | No breakdown phenomenon |
| Protection rating (IP) | IP44 (splash-proof) or IP67 (waterproof) | EN 60529 |
| Flame retardant rating of the casing | UL94 V-0 | Glow wire test at 850 degrees Celsius |
| Cable entry range | 12.0 – 22.0 mm | Suitable for heavy-duty industrial cables |
| Insertion and extraction force test | 0.8 – 1.2 N/mm² | Ensure it is secure and easy to operate |

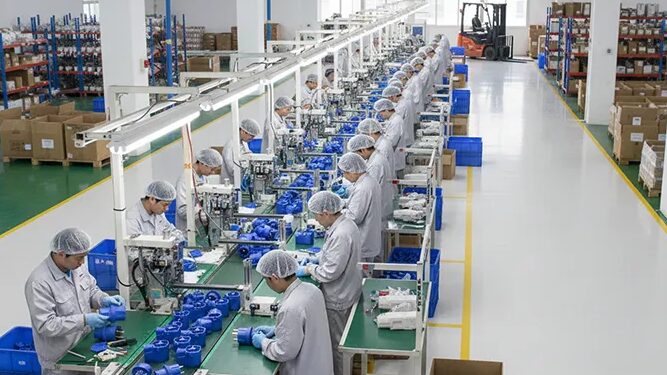

The biggest core competitiveness of the 32A industrial plug produced by DTCEE lies in the quality control of the whole industry chain. Compared with manufacturers in the market that purchase spare parts for assembly, DTCEE has independent injection molding workshop and copper parts processing workshop, which can accurately control the tolerance of metal contacts within 0.02mm. This extreme precision ensures that every plugging and unplugging is tight and smooth, avoiding spark problems caused by poor contact. In addition, DTCEE insists on using new modified flame retardant nylon materials to make the products perform well in toughness and aging resistance. After 5000 mechanical plugging tests, the electrical performance still meets the initial use standard, which greatly reduces the hidden dangers of after-sales maintenance and brand reputation risks for electromechanical equipment suppliers pursuing long-term stability.

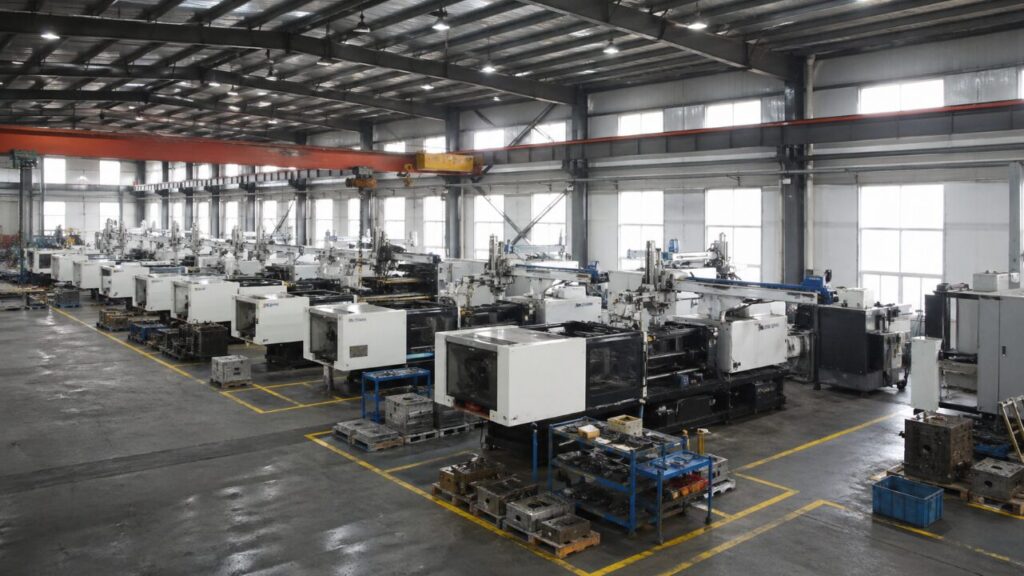

This type of equipment requires extremely high current stability. DTCEE’s 32A industrial plug can provide reliable power input to ensure uninterrupted operation of the main engine for a long time and high load.

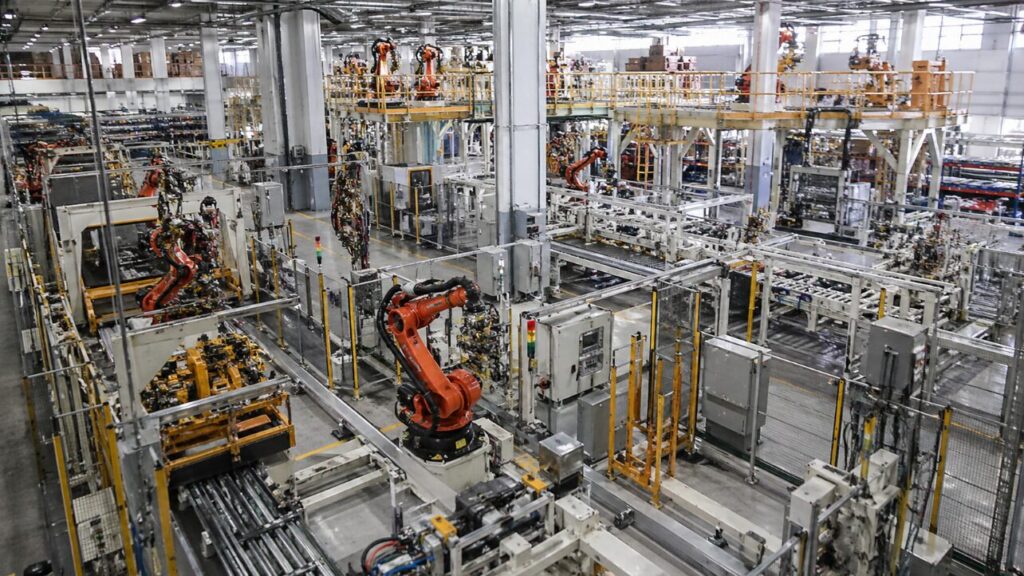

Suitable for integrators who design a complete set of power distribution solutions for factories, providing them with standardized interfaces that comply with international specifications to facilitate later modular maintenance and expansion.

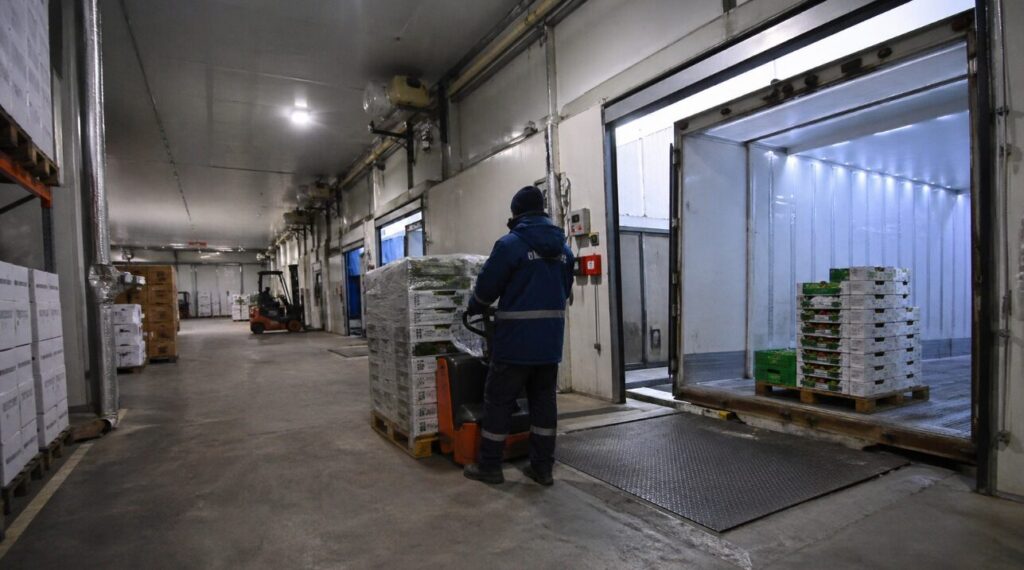

for mobile refrigeration equipment that needs to be frequently used in humid and low temperature environments, it provides high-grade waterproof protection to ensure the safety of electricity during the cold chain transportation of food and medicine.

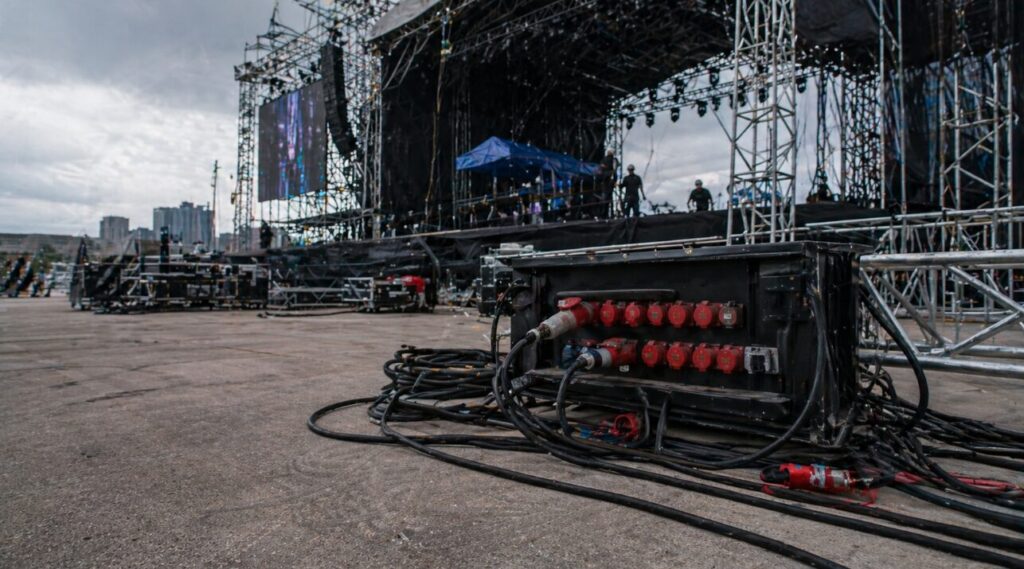

for performing arts activities and leasing industry, to provide trample-resistant, easy-to-install connection solutions to meet the rapid assembly needs of temporary high-power lighting and sound equipment.
according to the depth of the terminal, strip the outer sheath and inner insulation of the cable to expose the copper core wire of about 12mm. It is recommended to use crimp ends to prevent multiple strands of thin wire from diverging and affecting conductivity.
Pass the cable through the sealing cover and the fastener at the tail of the plug. Be sure to confirm the accurate position of the sealing sleeve during installation, which is the basis for achieving IP44/IP67 grade protection.
Connect the wires strictly according to the polarity identification (L1, L2, L3, N, E) inside the plug. Tighten the screws with a hand tool to the appropriate torque to ensure that the cable is secure and does not loosen.
push the plug inner core into the shell slot, and tighten the tail nut to squeeze the seal ring to wrap the cable. Use a multimeter to check the polarity and ground resistance before energizing to ensure that the system is connected correctly.
certificate
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
The 32A industrial plug produced by DTCEE adopts pure new material toughened nylon shell and high-precision brass conductor to ensure excellent insulation and conductive stability under industrial high-strength operation. As a direct supply factory with 6000 square meters of factory buildings, Datong Electric independently controls the production of copper parts, eliminating intermediate links and providing more advantageous wholesale prices and fast delivery for global suppliers.
32 Amps
Current Rating
220 to 415 volts
Rated voltage
3 core/4 core/5 core
Pole number specifications
The internal conductive contact adopts self-produced high-purity brass, and the conductivity is 15% higher than the industry average. This low-resistance design can control the temperature rise at full load operation within 45K, effectively prevent the terminals from over-melting and destroy, and ensure the continuous operation of electromechanical equipment.
shell selection of new impact resistant nylon material, do not add any recycled material. Its impact strength reaches 15 KJ per square meter, even in the winter cold or industrial site by accidental trampling, impact, there will be no structural cracking, to protect the internal electrical connections.
silicone rubber sealing ring and locking structure realized by precision injection molding process keep 32A industrial plug dry in humid and dusty environment. This directly reduces the frequency of electrical short-circuit caused by environmental water vapor intrusion, and prolongs the overall service life of the supporting equipment.
The product is designed with positioning keys and rotating locking rings that meet international standards to provide strong mechanical retention. When used on mechanical equipment subjected to vibration, it can ensure that the plug will not fall off accidentally and avoid the loss of production line downtime caused by sudden power failure.
the terminal space is sufficient and equipped with anti-loosening screws to support wire access from 2.5 to 10 mm² specifications. Compared with the traditional structure, this design shortens the installation time of a single plug by 30%, and significantly improves the assembly efficiency of the electromechanical equipment manufacturer.
The product has passed the rigorous high and low temperature cycle test, and the performance is not degraded at the ambient temperature of minus 30 degrees to 50 degrees. This enables the 32A industrial plug to adapt to various matching requirements from polar cold storage to high temperature heat treatment workshop, and improve the versatility of the product.
| Technical characteristics | Specifications Details | Meets standards |
| Rated current (A) | 32A | IEC 60309-1/-2 |
| Voltage range (V) | 110V/230V/400V (distinguished by color) | International standard color coding |
| Insulation resistance (MΩ) | > 5MΩ | 500V DC voltage test |
| Dielectric strength (V) | 2500V / 1 minute | No breakdown phenomenon |
| Protection rating (IP) | IP44 (splash-proof) or IP67 (waterproof) | EN 60529 |
| Flame retardant rating of the casing | UL94 V-0 | Glow wire test at 850 degrees Celsius |
| Cable entry range | 12.0 – 22.0 mm | Suitable for heavy-duty industrial cables |
| Insertion and extraction force test | 0.8 – 1.2 N/mm² | Ensure it is secure and easy to operate |
This type of equipment requires extremely high current stability. DTCEE’s 32A industrial plug can provide reliable power input to ensure uninterrupted operation of the main engine for a long time and high load.
Suitable for integrators who design a complete set of power distribution solutions for factories, providing them with standardized interfaces that comply with international specifications to facilitate later modular maintenance and expansion.
for mobile refrigeration equipment that needs to be frequently used in humid and low temperature environments, it provides high-grade waterproof protection to ensure the safety of electricity during the cold chain transportation of food and medicine.
for performing arts activities and leasing industry, to provide trample-resistant, easy-to-install connection solutions to meet the rapid assembly needs of temporary high-power lighting and sound equipment.
according to the depth of the terminal, strip the outer sheath and inner insulation of the cable to expose the copper core wire of about 12mm. It is recommended to use crimp ends to prevent multiple strands of thin wire from diverging and affecting conductivity.
Pass the cable through the sealing cover and the fastener at the tail of the plug. Be sure to confirm the accurate position of the sealing sleeve during installation, which is the basis for achieving IP44/IP67 grade protection.
Connect the wires strictly according to the polarity identification (L1, L2, L3, N, E) inside the plug. Tighten the screws with a hand tool to the appropriate torque to ensure that the cable is secure and does not loosen.
push the plug inner core into the shell slot, and tighten the tail nut to squeeze the seal ring to wrap the cable. Use a multimeter to check the polarity and ground resistance before energizing to ensure that the system is connected correctly.
