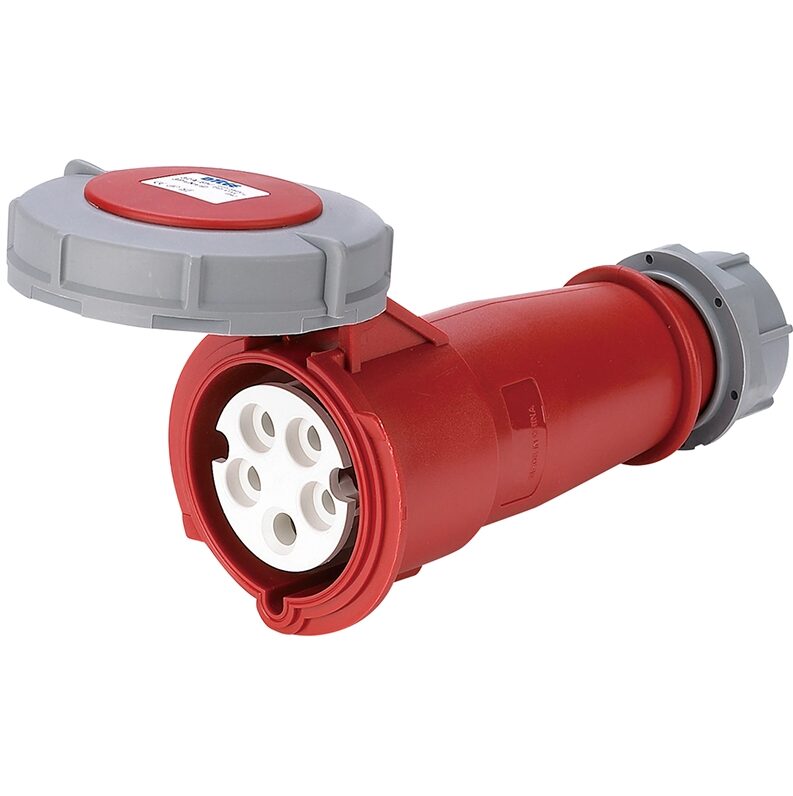

The DTCEE industrial plug connector provides excellent electrical stability in harsh environments with high conductivity brass contacts and an impact resistant nylon housing. DTCEE is a source factory with 30 years of manufacturing experience, equipped with 25 injection molding machines and automated assembly lines, which can eliminate the price difference between traders and provide you with competitive wholesale prices and reliable delivery guarantee.
Industrial plug connectors is mainly used in injection molding machinery, refrigerated container monitoring, stage lighting and sound engineering and factory automation control system.
The solid brass rod with extremely high conductivity is precision machined, which reduces the temperature rise by 15% compared with ordinary alloy contacts, ensures that there is no heat generation under high current load, and greatly improves the electrical safety life of the connector.
imported PA66 raw materials injection molding, with excellent anti-drop and anti-fragmentation performance, even in the cold environment of minus 30 degrees will not be brittle, to adapt to extreme outdoor conditions.
combined with high elastic sealing ring and screw-on cable joint, the waterproof grade reaches IP67, even if soaked in water up to one meter deep for a short time, it can keep the internal dry and ensure that the power of the production line is not interrupted.
strictly follow the IEC 60309-1/2 standard manufacturing, different voltage levels using blue, red and other standard colors to distinguish, from the physical level to eliminate the risk of misinsertion, compatible with the global mainstream industrial equipment.
the internal terminal adopts the anti-loose screw locking technology, the construction efficiency is 30% higher than that of the traditional connector, and can withstand mechanical vibration for a long time without poor contact.
The surface of the metal contact is specially treated with anti-oxidation, and the shell has acid and alkali resistance. The failure rate in the coastal salt spray environment or chemical workshop is 70% lower than that of ordinary connectors.
| Key performance indicators | Parameter Specifications Details | Test Standards |
| Rated voltage range | 110V – 130V (yellow), 220V – 250V (blue), 380V – 415V (red) | IEC 60309 |
| Insulation resistance | ≥ 500MΩ | 500V DC |
| Dielectric strength | 2500V AC / 1min No breakdown | Safety electrical testing |
| Environmental tolerance temperature | -30℃ to +50℃ | Outdoor Climate Simulation |
| Wiring capability | 1.5mm² to 150mm² (depending on current specifications) | Standard cable adapter |
| High temperature resistance test | No deformation was observed during the 125℃ ball pressure test. | Thermal stability test |
DTCEE industrial plug connectors are superior to the industry average in terms of material purity and machining accuracy. We insist on using 100 new nylon to replace low-cost recycled plastics, and rely on 30 years of experience in the mold team, the shell fit tolerance control within 0.05mm, to solve the market common connector insertion force is not uniform or shell deformation problems.

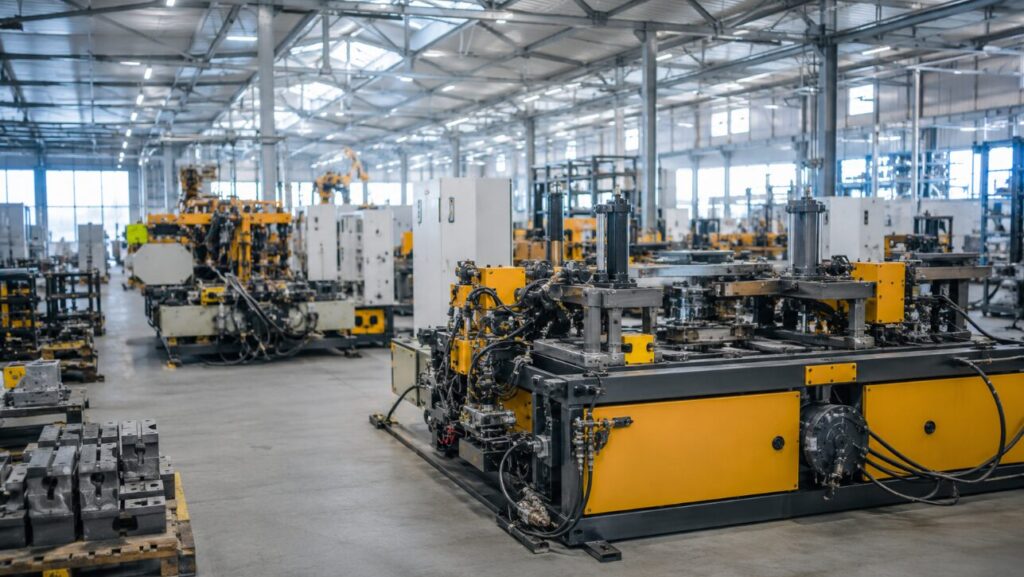

Provide stable power input interfaces for injection molding machines, packaging machines, etc. The standardized design and high compatibility of DTCEE products can reduce the electrical maintenance rate of equipment after leaving the factory.

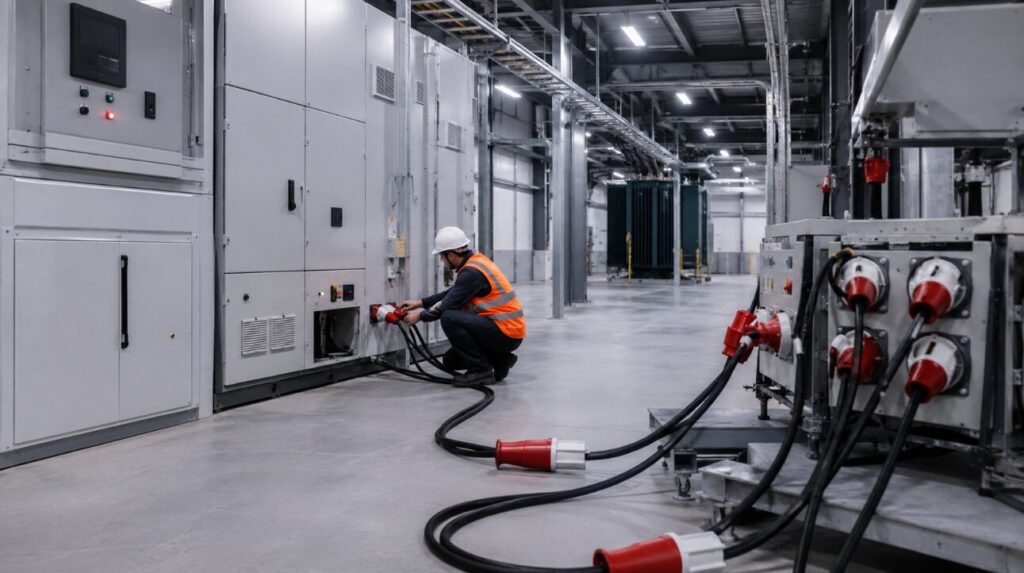

used in power distribution cabinets and mobile distribution box projects, DTCEE connectors can provide isolation protection in accordance with IEC standards to meet the project manager’s requirements for high safety standards.

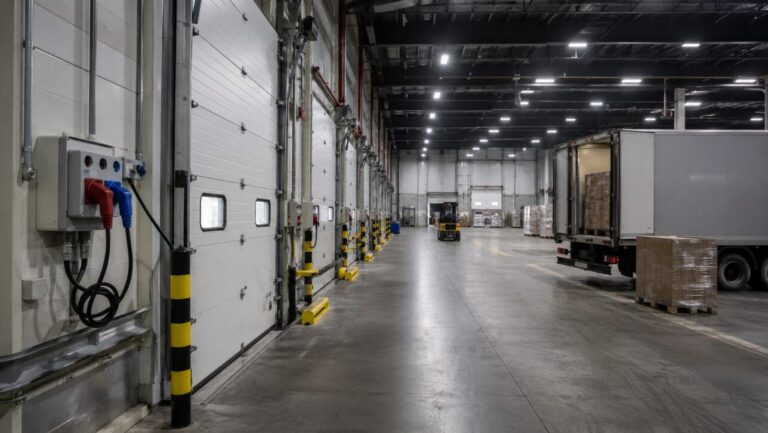

The port and cold storage environment has extremely high requirements for the sealing of connectors. DTCEE’s IP67 waterproof connector is the core accessory to ensure the continuous power supply of refrigerated containers.

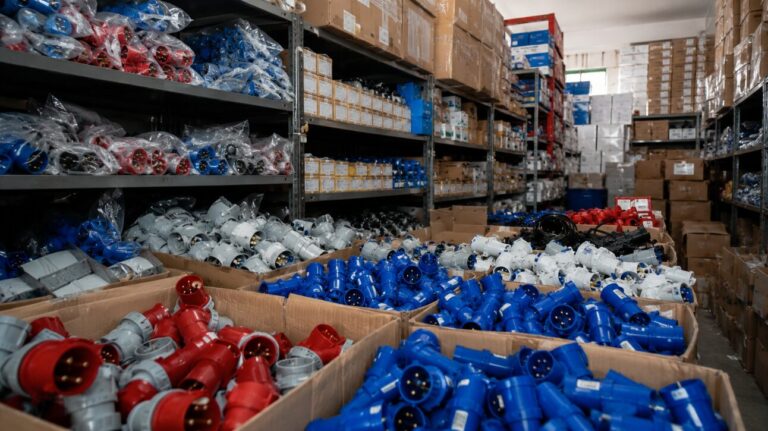

looking for manufacturers with long-term supply capacity and OEM customization experience, DTCEE with 6000 square meters of plant and large-scale automated production, to meet customer demand for high cost performance and bulk procurement.
Strip the cable insulation layer according to the internal mark of the connector, and insert the copper core into the terminal hole with color identification to ensure that no burr is exposed.
use the screwdriver of the corresponding specifications to tighten the wiring screw, the torque must reach the standard range, to prevent long-term power-on due to loose arc.
after assembling the shell, be sure to screw the tail cable locking sleeve to the most tight, so that the sealing ring is close to the cable to ensure the overall waterproof performance of the connector.
regular inspection in the power-off environment, check whether there are signs of moisture or heat discoloration at the connection, and keep the contacts clean to maintain the best conductive effect.
certificate
Welcome to our Frequently Asked Questions page. We have compiled answers to common questions you may have, hoping to provide you with clear and quick solutions. If you cannot find the information you need here, please feel free to contact our customer support team.
The DTCEE industrial plug connector provides excellent electrical stability in harsh environments with high conductivity brass contacts and an impact resistant nylon housing. DTCEE is a source factory with 30 years of manufacturing experience, equipped with 25 injection molding machines and automated assembly lines, which can eliminate the price difference between traders and provide you with competitive wholesale prices and reliable delivery guarantee.
16A to 420A
Rated current
IP44 and IP67
Protection class
3 core 4 core 5 core
Number of poles
The solid brass rod with extremely high conductivity is precision machined, which reduces the temperature rise by 15% compared with ordinary alloy contacts, ensures that there is no heat generation under high current load, and greatly improves the electrical safety life of the connector.
imported PA66 raw materials injection molding, with excellent anti-drop and anti-fragmentation performance, even in the cold environment of minus 30 degrees will not be brittle, to adapt to extreme outdoor conditions.
combined with high elastic sealing ring and screw-on cable joint, the waterproof grade reaches IP67, even if soaked in water up to one meter deep for a short time, it can keep the internal dry and ensure that the power of the production line is not interrupted.
strictly follow the IEC 60309-1/2 standard manufacturing, different voltage levels using blue, red and other standard colors to distinguish, from the physical level to eliminate the risk of misinsertion, compatible with the global mainstream industrial equipment.
the internal terminal adopts the anti-loose screw locking technology, the construction efficiency is 30% higher than that of the traditional connector, and can withstand mechanical vibration for a long time without poor contact.
The surface of the metal contact is specially treated with anti-oxidation, and the shell has acid and alkali resistance. The failure rate in the coastal salt spray environment or chemical workshop is 70% lower than that of ordinary connectors.
| Key performance indicators | Parameter Specifications Details | Test Standards |
| Rated voltage range | 110V – 130V (yellow), 220V – 250V (blue), 380V – 415V (red) | IEC 60309 |
| Insulation resistance | ≥ 500MΩ | 500V DC |
| Dielectric strength | 2500V AC / 1min No breakdown | Safety electrical testing |
| Environmental tolerance temperature | -30℃ to +50℃ | Outdoor Climate Simulation |
| Wiring capability | 1.5mm² to 150mm² (depending on current specifications) | Standard cable adapter |
| High temperature resistance test | No deformation was observed during the 125℃ ball pressure test. | Thermal stability test |
Provide stable power input interfaces for injection molding machines, packaging machines, etc. The standardized design and high compatibility of DTCEE products can reduce the electrical maintenance rate of equipment after leaving the factory.
used in power distribution cabinets and mobile distribution box projects, DTCEE connectors can provide isolation protection in accordance with IEC standards to meet the project manager’s requirements for high safety standards.
The port and cold storage environment has extremely high requirements for the sealing of connectors. DTCEE’s IP67 waterproof connector is the core accessory to ensure the continuous power supply of refrigerated containers.
looking for manufacturers with long-term supply capacity and OEM customization experience, DTCEE with 6000 square meters of plant and large-scale automated production, to meet customer demand for high cost performance and bulk procurement.
Strip the cable insulation layer according to the internal mark of the connector, and insert the copper core into the terminal hole with color identification to ensure that no burr is exposed.
use the screwdriver of the corresponding specifications to tighten the wiring screw, the torque must reach the standard range, to prevent long-term power-on due to loose arc.
after assembling the shell, be sure to screw the tail cable locking sleeve to the most tight, so that the sealing ring is close to the cable to ensure the overall waterproof performance of the connector.
regular inspection in the power-off environment, check whether there are signs of moisture or heat discoloration at the connection, and keep the contacts clean to maintain the best conductive effect.
