How To Cover Outdoor Power Outlet

In order to truly protect outdoor power sockets and ensure long-term electrical safety, there are only most reliable professional-level schemes in the industry at present: to install a UL-certified, all-weather “in-use” waterproof cover on sockets with GFCI.

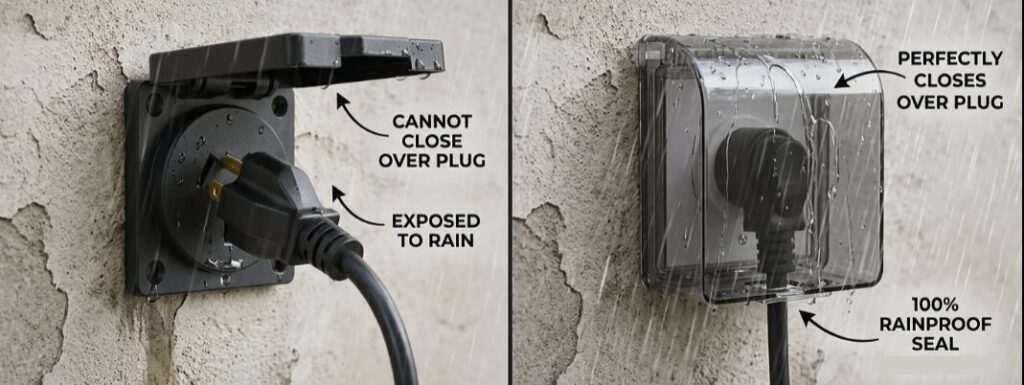

Many people still use the old-fashioned flat flip cover, which is only useful when the socket is idle. Once you plug in the wires, the lid has to be ribbed, and rainy days are simply a hidden danger. And this “while-in-use” waterproof cover has a deep, impact-resistant shell, even in the case of the plug, the transparent cover can be tightly fastened, to rain, snow and moisture to form a 100 percent sealed barrier. When installing, you must clamp a high-quality foam gasket between the base and the junction box, and for the sake of safety, I usually recommend a circle of silicone glass glue on the top and sides of the mounting surface. This combination of punches not only prevents short circuits and electric shock, but also allows your home’s outdoor facilities to perfectly comply with the latest electricity regulations.

Why “In Use” Rainproof Box Is Outdoor Standard?

When considering how to cap the socket, many homeowners will mistakenly think that an ordinary flip cover is enough. That kind of cover loses its protective meaning the moment the power cord is plugged in.

The “in use” waterproof cover is the industry standard because it provides a protected “bubble space”. This deep cover design ensures that whether you are connecting holiday light belts, weeding equipment or surveillance cameras, the connection point is protected from vertical precipitation and wind and rain. Electrical regulations in many areas (such as NEC) now mandate the use of this “reinforced” enclosure in wet places, not only for compliance, but also to prevent the socket from being corroded by moisture and causing fires.

GFCI Protection

It is not enough to have a shell, physical shielding only solves half the problem. A professional installation must include a GFCI receptacle.

Outdoor environments are inherently prone to “ground faults”-electricity runs off the ground on moisture or wet ground. The GFCI socket is like an extremely fast sentry. Once a current leak is detected, it will cut off the power within a few milliseconds. The physical rainproof box is “external defense” and GFCI is “internal control”. This double-layer defense system can truly protect your home’s power grid and the safety of your family.

How To Operate Correctly

In order to achieve the professional-grade sealing effect I mentioned earlier, these key points must not be sloppy during installation:

• Power failure: Before moving any wires, go to the main gate to turn off the insurance.
• Check the gasket: Before fixing the shell, put the high-quality foam gasket on the back plate. This gasket is the first line of defense against moisture seeping into the junction box, so don’t let it slip.
• Fixed housing: Use matching stainless steel screws to install the rain box on the GFCI socket. Be sure to level, otherwise the drain inside the lid will not function properly.
• Test the latch: Make sure there is a clear “click” sound when the transparent cover is fastened. If the lid is loose and the wind blows, the seal will be over.

Advanced Waterproof

Even with gaskets, if your exterior wall is a rough surface such as brick wall, hanging board or real stone paint, foam gaskets cannot completely fill the gap.

The safest way is to squeeze a circle of 100 percent silicone glass glue on the top and left and right sides of the mounting plate in contact with the wall. Note: The bottom must not be sealed. This can leave a “drain hole” effect, in case of condensation in the box, it can flow out along the bottom, rather than being trapped inside and corroding the terminal.

Compliance And Long-Term Maintenance

As long as you follow these standards-use UL-certified reinforced housings, configure GFCI protection, and match the correct silicone seals-your outdoor electricity environment will fully meet the building codes for wet places.

Later maintenance is also key. You need regularly check the “bubble cover” to see if it has become brittle and cracked due to UV exposure, and press the GFCI test button. An outdoor socket with protection in place, regardless of wind or rain, should be able to provide you with stable and reliable power for many years.
